With 2000 PP/PC/PE Hollow Profile Sheet Extrusion lines all around the world

PP Hollow Sheet Extrusion Line, also known as a multi-panel production line, honeycomb panel production line, grid panel production line,PP Corrugated sheet machine or double-wall panel production line.

PP hollow profile sheet extrusion line can be classified differently according to the thickness, width, structure, shape of the products they produce, as well as the types of plastic raw materials used:

  • According to the product width, they can be divided into units with widths of 1400mm, 1800mm, 2300mm, 2600mm, 3000mm, and 3200mm.
  • According to the product thickness, they can be divided into units for thickness ranges of 2 - 6mm, 6 - 12mm, and 12 - 18mm.
  • According to the product structure, they can be divided into double - wall sheets, triple - wall sheets, and quadruple - wall sheets.
  • According to the product shape, they can be divided into ordinary type - I, type - S, type - V, type - X, and type - 米.
  • According to the plastic raw materials used for the products, they can be divided into those using PP, PE, and PC.
  • In addition, there are various product series such as ultra - light and ultra - thin sheets, and hollow films for greenhouse.
Email:handern@handern.com

The 2025 International Rubber and Plastic Exhibition (Chinaplas)

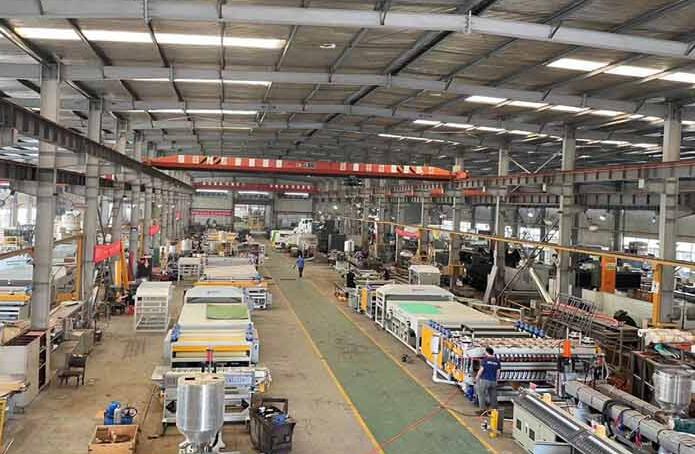

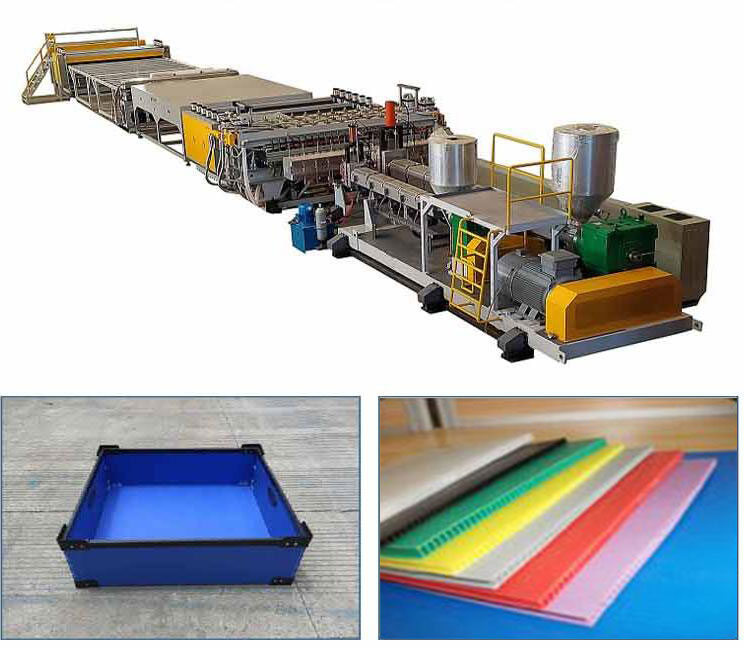

PP/PC/PE hollow profile sheet extrusion line picture

Contact US

PP/PC/PE hollow profile sheet extrusion line Start up video

whatsApp consultation

A leading provider of polymer material extrusion equipment in China

Wuhan Handern Machinery Co., Ltd. is a National-level "Little Giant" Enterprise (Specialized, Refined, Unique, and Innovative)

China’s leading enterprise in polymer material extrusion equipment and a pioneer in the localization of high-end equipment for the plastic extrusion industry.

Global leader in hollow profile sheet extrusion lines, exported to over 20 countries and regions. Ranked No.1 in global shipments for over a decade, with cumulative deliveries exceeding 2,000 production lines.

Innovation Highlights:

China’s first to develop the one-step hollow sheet manufacturing process.

Pioneered green application of industrial solid waste phosphogypsum, with the nation’s first complete one-step hollow profile sheet extrusion line delivered to Guizhou Phosphate Chemical Group in March 2024.

The latest intelligent one-step hollow profile sheet extrusion line in 2026 is the fifth-generation hollow profile sheet extrusion line. It features a globally unique one-step process that eliminates the need for granulation. The intelligent control system allows for smarter remote operation, saving 30% on electricity, increasing output by 50%, and reducing manpower by 2 people per 24 hours.

Contact US

Technical Parameter

PP/PC/PE hollow profile sheet extrusion machine data
Machine type Sheet width(mm) Sheet thickness(mm) Max.Extrusion capacity(KG/H)
1400 1250 2-6 6-12 12-18 230/280/350
1800 1650 2-6 6-12 12-18 280/350/420
2300 2150 2-6 6-12 340/350
2600 2450 2-6 6-12 360/480
3200 3050 2-6 6-12 600
3600 3400 2-6 6-12 680
PC hollow profile sunshine sheet production machine data
Machine type Sheet width(mm) Sheet thickness(mm) Max.Extrusion capacity(KG/H)
2300 2100 4-6 8-12 300-400
The configuration of machines can be CUSTOMIZED according to your needs!
PP Corrugated Sheet Making Machine Unit
Single Screw Extruder one set
Die one set
Hydraulic Pressure Screen Changer one set
Vaccum Calibration Table one set
First Haul-off one set
Oven one set
Cooling Device one set
Second haul-off one set
Cutting device one set
Electrical Control Cabinet one set
Stacker one set
Screw Loader one set
whatsApp consultation

Why Choose Us

  • Wuhan Handern Machinery Co., Ltd. conducts annual research and development upgrades on its PP Hollow Sheet Extrusion Line, ensuring high efficiency and stability. Currently, it operates on its fifth-generation PP Hollow Sheet Extrusion Line.
  • New 5th gen VS 4th gen Hollow Sheet Extrusion Line ↓30% electricity savings↑50% increase in production↓2 fewer people per 24 hours
  • The upgraded, newly developed phosphogypsum PP Hollow Sheet Extrusion Line can not only reduce the amount of PP filling and lower raw material costs, but also effectively solve the problem of industrial solid waste.
  • The globally first-invented one-step pp hollow sheet manufacturing process eliminates the need for pelletizing, enabling direct production. It also shortens the length of the hollow board production line and reduces the floor space of the plant
  • Our PP Hollow Sheet Extrusion Line has the highest global sales volume annually. Currently, we have over 2000 lines in stable operation.

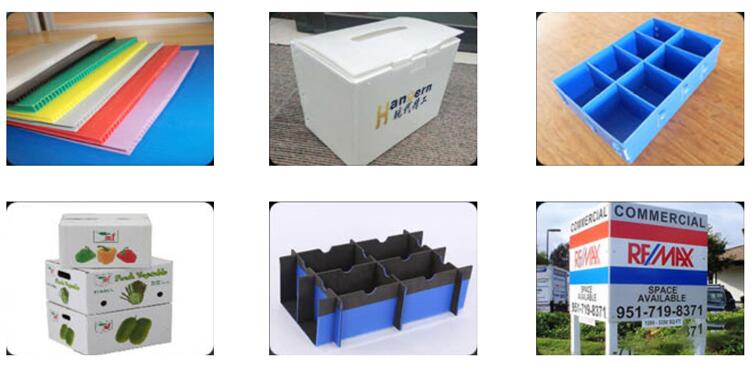

Technical Parameter Image

About Handern

About Handern Image
  • Wuhan Handern Machinery Co., Ltd. is a leading domestic provider of polymer material extrusion equipment and system solutions and a national-level specialized and new "little giant" enterprise. The company's equipment products are widely used in the production and processing fields of new environmentally friendly packaging materials and high-end functional films. It has leading extrusion equipment and system solutions in many application scenarios, filling the domestic gap and realizing the domestic replacement of high-end equipment.
    The company's hollow plate equipment exports to more than 20 countries and regions around the world, and its shipments have been ranked first for more than ten consecutive years. It has pioneered one-step manufacturing technology in the world, mastered the manufacturing processes of hollow plates such as high-filled phosphogypsum and fly ash, opened up a new scenario for green application of industrial solid waste, solved major national environmental problems, and delivered the first one-step phosphogypsum hollow plate production line to Guizhou Phosphate Group. The company is a leading domestic dry-process lithium battery separator production equipment enterprise, and the only domestic company with the ability to deliver the entire production line of dry-process lithium battery separator. The downstream terminal applications cover industry leaders such as BYD. The company's semi-solid lithium battery electrolyte membrane, polyimide (PI) membrane, ultra-thin composite fluid collection membrane and other high-end functional film equipment have been delivered to customers one after another.
    The company insists on R&D drive and is deeply engaged in the field of polymer extrusion equipment. It has successively established the "Hubei Engineering Research Center for Biomedical and Protective Materials" with Huazhong University of Science and Technology, and jointly established the "Popylmer Intelligent Manufacturing Equipment R&D Center" with South China University of Technology. Relying on the team of Academician Qu Jinping, it has jointly carried out a number of technical development cooperation in the cutting-edge fields of polymer material forming and processing engineering, and is committed to promoting the development of domestic polymer intelligent manufacturing equipment and the process of domestic high-end equipment. The "Key Technique for Strengthening the Process of Polymer Materials Processing" jointly developed by the company, together with Huazhong University of Science and Technology and South China University of Technology, has successfully passed the scientific and technological achievements appraisal organized by the China Plastic Machinery Industry Association. The expert group unanimously believes that the relevant achievements are international firsts and are major innovations in the field of polymer and composite materials processing at home and abroad, and are at the international leading level.

FAQ:

1.Price of PP Corrugated Sheet Making Machine

Please offer the width and thickness you require, so we can equip extruders and moulds for you and offer the most reasonable price.

2. Validity of Price

Three month

3. Payment Terms

30% contract value (T/T) to our bank as deposit. 70% contract value (T/T) to our bank before delivery after test the machine in our factory.

4.Quality orientation

We have passed CE and ISO9001:2008 certificate. Our quality orientation is high quality machines. Provide high quality products and help customers make more profits are our continuous pursuit forever.

5.Professional Degree

We believe high quality products are based on high professional degree. If you are interested in our plastic machines, Handern will be your best choice.
